Our products
Fittings and quick-connect couplings
Pneumatic push-in fittings
5800 - Stainless steel push-in fittings

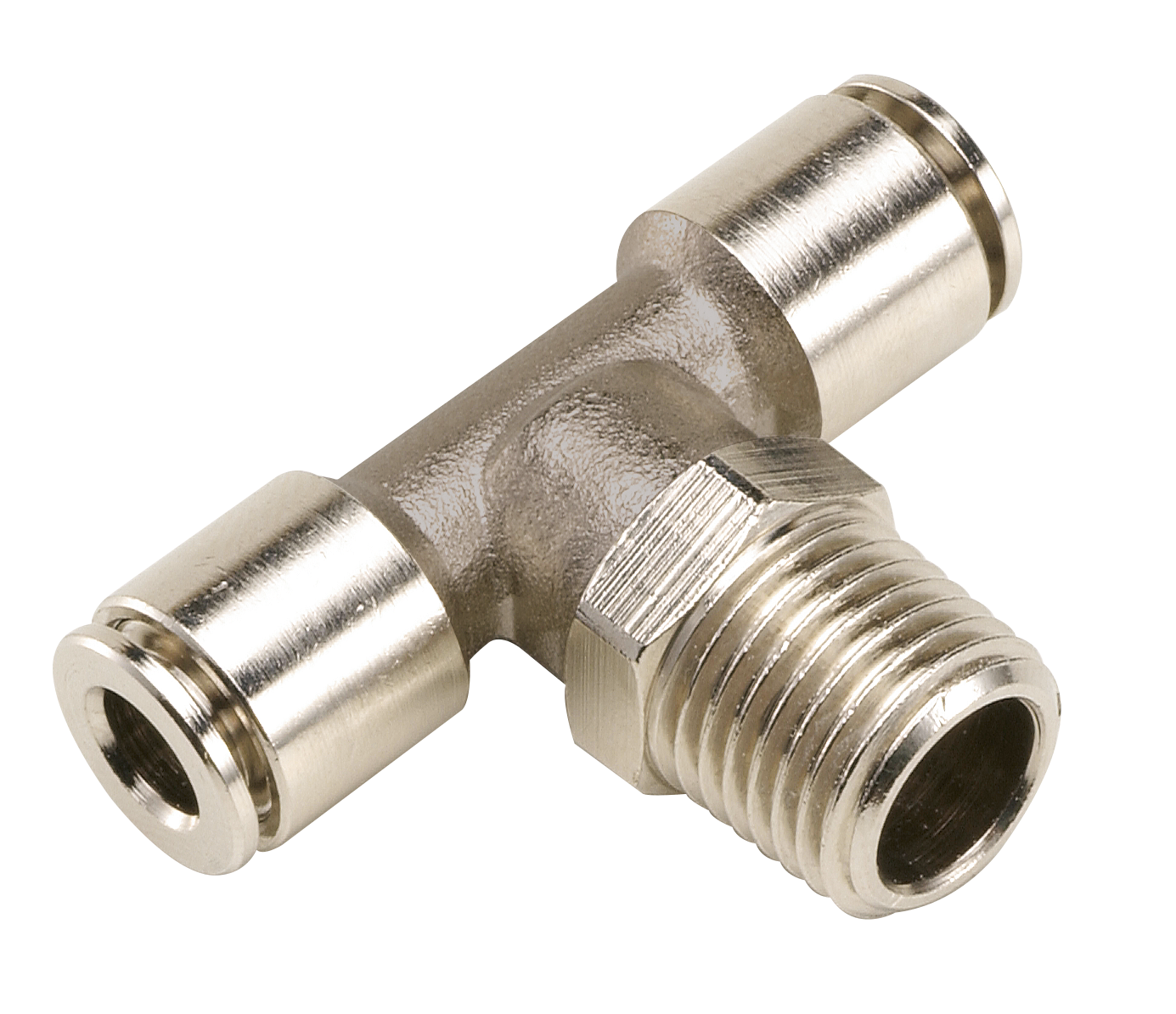

Implantation’s fittings SWIVEL CENTRAL BRANCH T MALE FITTING, TAPER
Product N° 5808

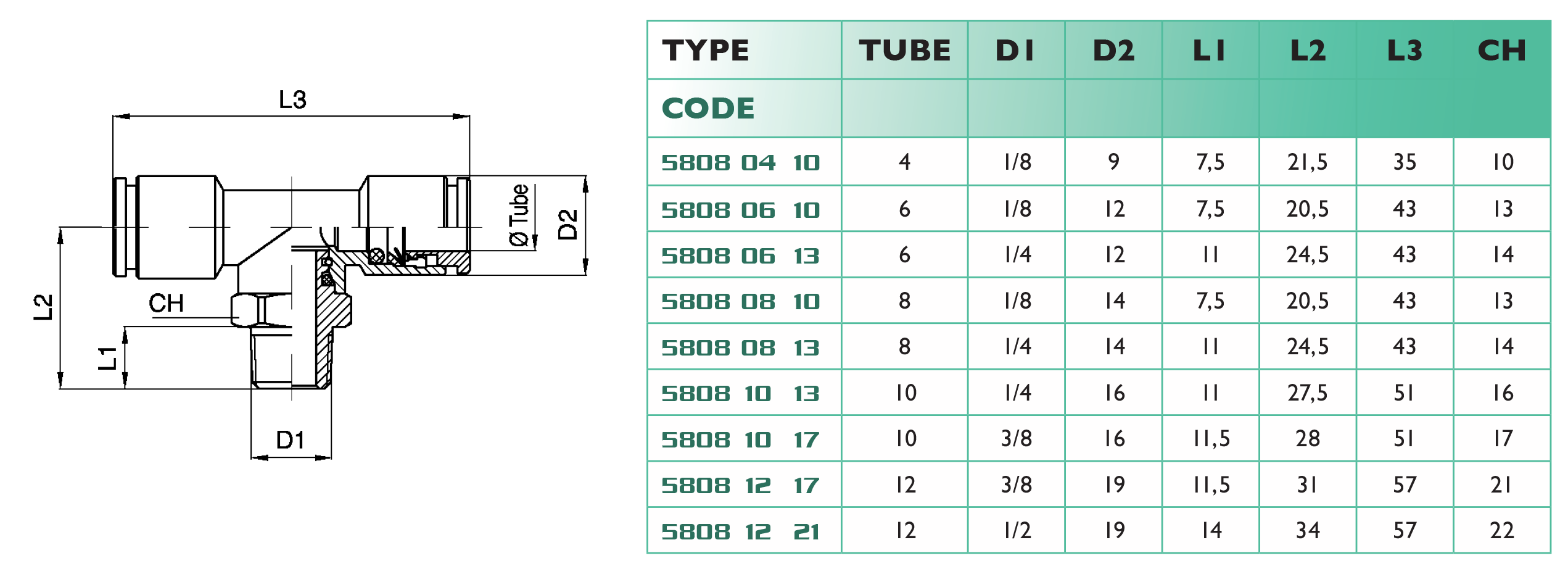

Download technical datasheet
Implantation’s fittings SWIVEL CENTRAL BRANCH T MALE FITTING, TAPER
Price on request
Back to product list
Areas of application : compressed air, vacuum
Technical features
- fitting’s body in stainless steel AISI 316 L
- collet made of stainless steel AISI 301
- FPM O-ring
- working pressure : - 0,99 ÷ 15 bar
- working temperature : -20°C ÷ 150°C
